技术特点

◆螺杆由优质钢材制成，推力强劲，运行稳定。特别适用于大型活动百叶窗、各种大型上悬窗、下悬窗、斜屋顶窗、重型天窗等窗型的开启，用于消防排烟和自然通风。

◆大于30000次推出及拉回的寿命设计，经负载测试合格。

◆全封闭式内螺纹驱动结构，封闭性好，适用于粉尘风沙等空气颗粒污染较大的环境使用。

◆内置行程电子过载保护电路，并可多机联接驱动。

◆保护等级：IP65。

◆安装程序简易，开启行程50-1000mm，可根据用户需求定制。

◆产品符合国标：GB/T 19001-2008，通过欧盟CE认证和中国***消防电子产品认证。



Technical Features

◆ The screw is made of high quality steel, strong thrusting, stable running. Especially suitable for various large movable louvers, top-hinged window, bottom-hinged window, sloping roof window and heavy window. Commonly used in smoke exhaust and ventilation.

◆ Designed life: more than 30000 times push-pull cycles.

◆ Inner screw electric window actuator, super seal ability.

◆ Overload protection circuits built-in, linkage of multi-machines.

◆ Protection class: IP65.

◆ The stroke can be customized according to customer requirements.

◆ In conformity with GB/T 19001-2008, passed the CE &CCCF certification.

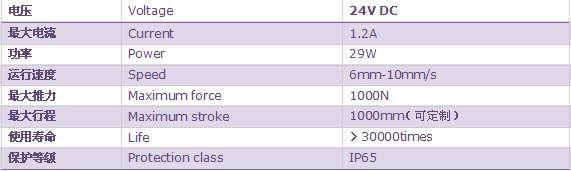

技术参数/Technical Date
