产品展示Product Showcase

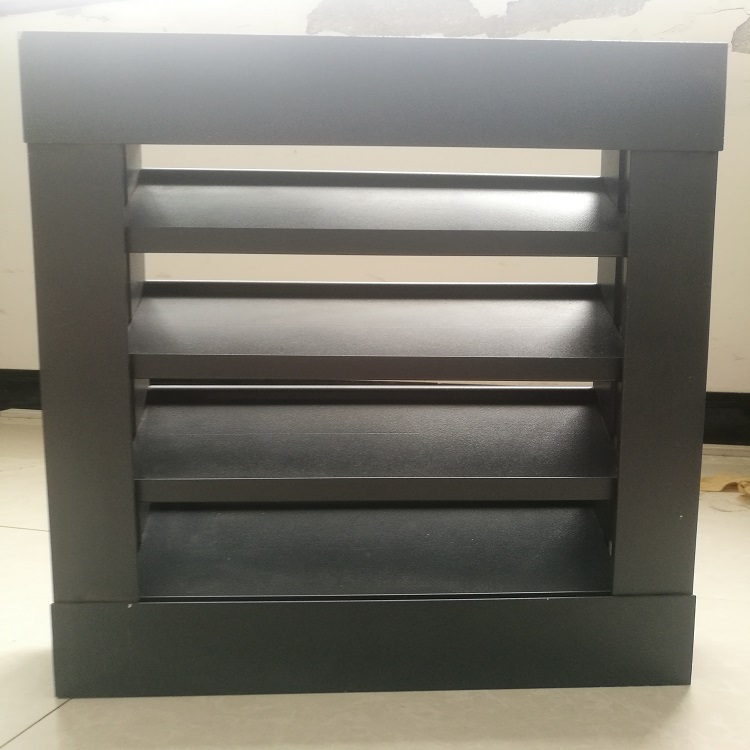

ENCO-RL性能防风防雨通风百叶/ENCO-RL Performance louvre


系统特点
1.叶片采用铝合金材质,美观、大气、还具有很强的防腐蚀功能。
2.叶片两侧独特排水槽,在遮阳、通风、采光的同时,还能有效防雨防风。
3.***防暴风雨 英国建筑服务研究与信息协会(BSRIA)质量认证
4.适合特殊无电源环境。
5.百叶颜色可根据客户的要求而定。
6.有单层、双层、三层多种类型可选。

The principal objective of Ventilation (or Performance) Louvre systems is to allow the passage of air, whilst providing a measure of protection against the rain.
Specifying performance has not been helped by conflicting technical information given by louvre manufacturers which quotes percentage free areas measured in different ways, namely as resistance to airflow and aerodynamic coefficients alternatively.
Design considerations include:
1.Site location and exposure
2.Severity of local (site) weather conditions
3.Location and exposure of louvres on building
4.Airflow rate and direction through louvre
5.Maximum acceptable pressure drop
6.Degree and depth of water penetration acceptable
7.Special solutions for sloping applications
8.Single bank,Double bank,Triple bank for optional.
For a true comparison of performance, the aerodynamic coefficient and the degree of rain defence effectiveness are the only sensible measures ,Approved by BSRIA UK。
